| Product features | Parameters |
| Principle | Fluorescence Immunoassay |
| Certificate | CE |
| Reading Time | 10 seconds |
| Pack | 1 Unit |
| Storage Temperature | -10 - 30℃ |

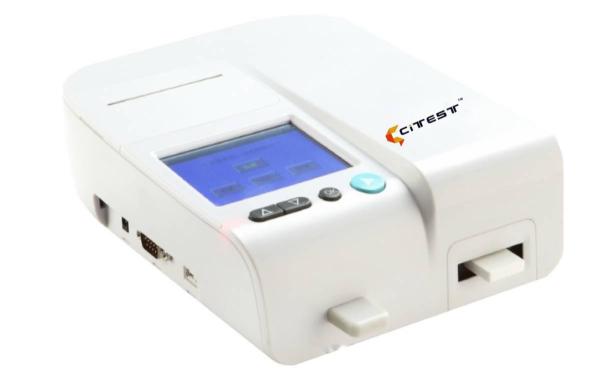

CITEST Fluorescence Immunoassay Analyzer ,10 seconds Reading Time,
AFR-100
Fluorescence Immunoassay Analyzer is an analyzer that based on
detection of fluorescence emitted during an immunoassay with
antigen antibody intera ction. The analyzer is designed to provide
quantitative or qualitative test results by the examination of
human samples with specific in vitro diagnostic test units
including Inflammation M arkers, Tumor Markers, Nephrology,
Diabetes, Cardiac Markers, Coagulation, Endocrinology,
Autoimmunity, Infectious Diseases and etc. Fluorescence Immunoassay
Analyzer offers the advantages of high accuracy, strong stability
and fast results.
Intended Use
Fluorescence Immunoassay Analyzer is an analyzer that based on
detection of fluorescence emitted during an immunoassay with
antigen-antibody interaction. The analyzer is designed to provide
quantitative or qualitative test results by the examination of
human samples with specific in vitro diagnostic test units
including Inflammation Markers, Tumor Markers, Nephrology,
Diabetes, Cardiac Markers, Coagulation, Endocrinology,
Autoimmunity, Infectious Diseases and etc. Fluorescence Immunoassay
Analyzer offers the advantages of high accuracy, strong stability
and fast results. Fluorescence Immunoassay Analyzer should be used
only with in vitro diagnostic tests manufactured by Citest as per
package insert provided with specific test kits used. Fluorescence
Immunoassay Analyzer is not expected to provide accurate results,
even if products manufactured by other companies are claimed to be
based on the same technology.
For professional use and use at Point of Care.
Please read this User Manual carefully before operation.
Scope of Application
Fluorescence Immunoassay Analyzer works with certain fluorescent
reagents. It’s for in vitro diagnosis professionals and Point of Care Use. It may be used in
central laboratories of medical institutions, outpatient or
emergency departments, clinical departments or medical services
(such as community health centers), or medical center, etc. It can
also be used in research laboratories.
Technical Specification
| · Principle | Fluorescence Immunoassay |
| · Test formats | Cassette |
| · Measurement | Quantitative, Qualitative |
| · Read Time | < 10 seconds |
| · Test Time | Ref: Analytes |
| · Specimen | Ref: Package Insert |
| · Power Source | DC 12V |
| · Dimensions | 173 mm (Width) × 210 mm (Depth) × 75.8 mm (Height) |
| · Weight | < 1.0 kg |
| · OS | Windows-Compatible proprietary program |
| · Excitation light source | LED |
| · Spectrum | Excitation spectrum: Mean wavelength λ0=365nm Reception spectrum: Mean wavelength λ1=610nm |
| · Connecting Ports | RS232, USB |
| · Storage Conditions | Temperature: -10-40℃, relative humidity: 20% to 90%, atmospheric
pressure: 86 to 106 kPa; and in a ventilated environment free of
corrosive gases. Measures should be taken to avoid moisture, and
prevent impact and severe vibration during transport. |
| · Operating Conditions | 4-30℃ |
| · Printer | Built-in thermal printer |
