Hemoglobin (Hb) Test Meter With Accurate Results, Professional Use
Only
| Name: | Hemoglobin (Hb) Test Meter With Accurate Results, Professional Use
Only |
| Specimen: | Wole Blood |
| Reading Time: | <15 Seconds |
| Storage Temperature: | -10 - 50℃ |
| Methodology:: | Reflectance Photometer |
| Specimen Volume: | 10 PL |
| Battery Life: | 360 Hours Or 2700 Tests |
| Memory: | 1000 Records |
| Meter Dimension: | 120mm*71mm*26mm |
| Format: | Meter |
| Certificate: | CE/CE0123/CE0197 |
| Pack: | 2T/50T/1Set/100pcs/box |
| Shelf Life: | 5 Years |
| Measurement Range:: | 4.5~25.6g/dL,45~256 G/L, 0.03-0.16 Mmol/L |
| Power Source: | 3 AAA Batteries |
| Units Of Measure: | G/dU G/L, Mmol/L |
| Automatic Shut Off: | 6 Minutes After Last Action |
| Display Size: | 47*41mm |
Hemoglobin (Hb) Test Meter with Accurate results, professional use
only
1 Intended Use
The Hemoglobin (Hb) Test Meter is intended for the quantitative
determination of hemoglobin and calculated hematocrit (HCT) in
non-anticoagulated capillary whole blood or anticoagulated venous
whole blood. The Hemoglobin Test Strip includes a mesh covered
sample reaction zone. Specimen is applied to the center of the
sample reaction zone. The hemoglobin is converted to methemoglobin
to cause a color change on the strip. The meter reads the
reflection of the strip every second until the end point of the
reaction is detected. The reflection at the end point is directly
proportional to the hemoglobin concentration.
2 Scope of Application
The Hemoglobin (Hb) Test Meter works with certain reagents strips
manufactured by Citest. for the quantitative detection. It’s for in
vitro diagnostic professional use only. It may be used in emergency
departments, clinical departments or medical services (such as
community health centers), etc.
3 Product Name and Model Type
Product Name:Hemoglobin (Hb) Test Meter
Model Type:AHR-100
4 Technical Specification
| Specification | Technical Parameters |
| Methodology | Reflectance Photometer |
| Test Time | <15 seconds |
| Measurement Range | 4.5~25.6g/dL |
| Specimen | Whole Blood |
| Specimen Volume | 10 μL |
| Power Source | 3 AAA batteries |
| Battery Life | 360 hours or 2700 tests |
| Units of Measure | g/dL, g/L, mmol/L |
| Memory | 1000 records |
| Automatic Shut Off | 6 minutes after last action |
| Meter Dimension | 120mm*71mm*26mm |
| Display Size | 47*41mm |
| Weight (without Batteries) | 83g |
| Meter Connectors | USB cable for Data Transfer or Power (optional) |
5 Working and Storage Condition
| Parameters | Working Condition | Storage and Transport Condition |
| Temperature | 15-30℃ | -10-40℃ |
| Relative Humidity | ≤80% | ≤90% |
| Atmospheric Pressure | 86-106kPa | 86-106kPa |
| Altitude | Up to 2000m | Up to 2000m |
| Place | Indoor use, stable table, avoid of direct strong light and strong
electromagnetic interference source | Clean, Ventilative, Stable |
How to use?
Step 1: Unscrew the lancing device cover from the body of the lancing
device.
Step 2: Insert a sterile lancet into the lancet holder and push it until
stop in the lancet holder.
Step 3: Hold the lancet firmly in the lancet holder and twist the safety
tab of the lancet, then pull the safety tab off. Save the safety
tab for lancet disposal.

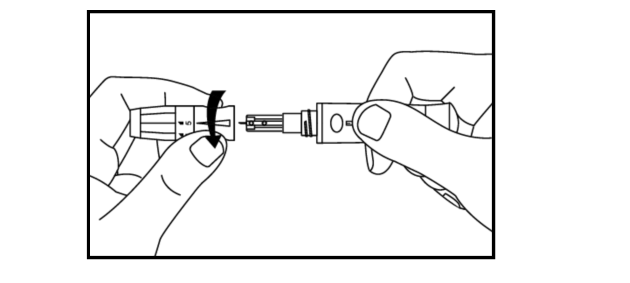

Step 4: Carefully screw the cover back to the lancing device. Avoid
contact with the exposed needle. Make sure the cover is fully
seated on the lancing device
Step 5: Adjust the puncture depth by rotating the lancing device cover.
There are a total of 6 puncture depth settings. To reduce
discomfort, use the lowest setting that still produces an adequate
drop of blood.
Step 6: Pull the cocking barrel back to set the lancing device. A click
may be heard. The device is now loaded and ready for obtaining a
drop of fingertip blood.
Step 7: Prior to collecting the capillary blood specimen, make sure the
patient’s hand is warm and relaxed. Massage the hand from the wrist
up to the fingertip a few times to encourage blood flow. Clean the
testing site with an alcohol swab and then dry the testing site
thoroughly.

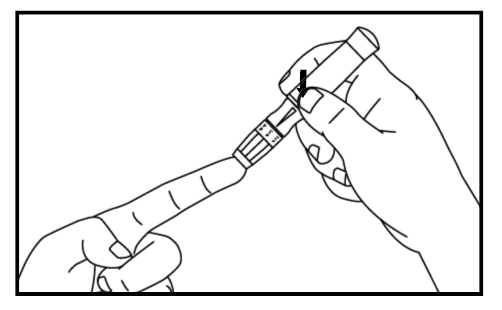

Step 8: Hold the lancing device against the side of the finger to be
lanced with the cover resting on the finger. Push the release
button to prick the fingertip. A click should be heard as the
lancing device activates. Gently massage from the base of the
finger to the tip of the finger to obtain the required blood volume
Step 9: Wipe away the first drop of blood. Apply light pressure to obtain
a second drop of blood. Hold the tube slightly downward and touch
the tip of the capillary transfer tube to the blood drop. Capillary
action will automatically draw the sample to the fill line and
stop.
Note: Make sure the blood covers the air vent of the tube or it
will be hard to squeeze blood out. Never squeeze the capillary
transfer tube while sampling.
Step 10: Unscrew the lancing device cover. Place the safety tab of the
lancet on a hard surface and carefully insert the lancet needle
into the safety tab. Press the release button to make sure that the
lancet is in the extended position. Slide the ejection button
forward to eject the used lancet. Place the lancing device cover
back on the lancing device.
Note: Dispose of the used lancet according to local regulations.
